- Outdoor led screen are Easy to maintain
- Outdoor led screen with Slim Thickness
- Outdoor led screen is also waterproof
- High-Brightness Outdoor LED screen
- Outdoor led screen featuring IP cloud control
- Outdoor led screen with high resolution
- Outdoor led screen featuring good heat dissipation capacity
- Outdoor led screen are weight less
- Outdoor led screen features Wider viewing angle
- P.O.Box: 31077, Office No:23, Al Emadi Building, Near Hilal Signal, D Ring Road, Doha, Qatar
- [email protected]

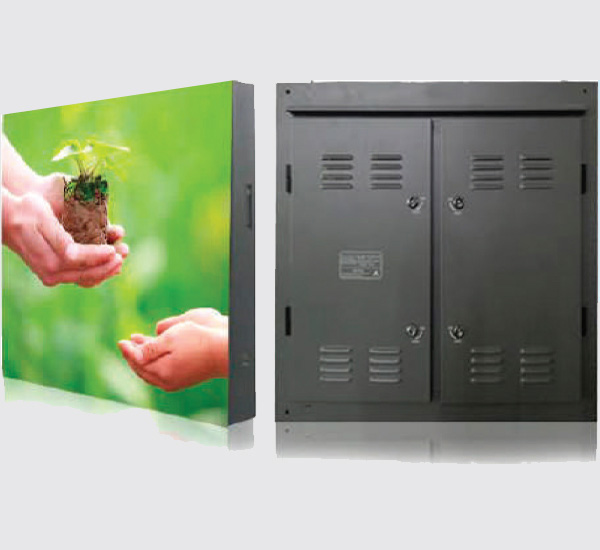

Outdoor LED Screen PRIME Series
MAJOR FEATURES
| PRIME WALL SERIES | ||||||||
| Model Name | EW-2.5OS | EW-3OS | EW-4OS | EW-4.8OS | EW-5OS | EW-6OS | EW-8OS | EW-10OS |
| Operating Environment | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor |
| Pixel Pitch (mm) | 2.5 | 3 | 4 | 4.8 | 5 | 6 | 8 | 10 |
| Cabinet Resolution | 384 X 384 | 312 x 312 | 240 X 240 | 120 x 120 | 192 x 192 | 160 x 160 | 128 x 128 | 120 x 120 | 96 x 96 |
| Cabinet Size (mm) | 960 X 960 | 960 X 960 | 960 X 960 | 576 x 576 | 960 X 960 | 960 x 960 | 768 x 768 | 960 x 960 | 960 x 960 |
| Cabinet Type | Mild Steel Iron Cabinet | |||||||
| LED Encapsulation Make | Kinglight | Kinglight | Kinglight | Kinglight | Kinglight | Kinglight | Kinglight | Kinglight |
| LED Type | SMD 1515 | SMD 1515 | SMD 2525 | SMD 2525 | SMD 2525 | SMD 2525 | SMD 3535 | SMD 3535 |
| Brightness | 5000 nits | 4000 nits | 5000 nits | 5000 nits | 4500 nits | 4200 nits | 4500 nits | 5500 nits |
| Driving IC | ICN2153 | ICN2153 | ICN2153 | ICN2153 | ICN2153 | ICN2153 | ICN2153 | ICN2153 |
| Scan | 1/16 | 1/13 | 1/10 | 1/9 | 1/8 | 1/8 | 1/5 | 1/2 |
| Service Access | Rear | Rear | Rear | Rear | Rear | Rear | Rear | Rear |
| Weight (kg) | 15 | 15 | 15 | 8 | 15 | 15|12 | 15 | 15 |
| Viewing Angle | 140/130 | 140/130 | 140/130 | 140/130 | 140/130 | 140/130 | 140/130 | 140/130 |
| Module Size | 320 x 160 | 320 x 160 | 320 x 160 | 288 x 288 | 320 x 160 | 192 x 192 | 320 x 160 | 320 x 160 |
| Minimum View DOStance (m) | >=2.5 | >=3.0 | >=4.0 | >=4.8 | >=5 | >=6 | >=8 | >=10 |
| Refresh Rate (Hz) | >=3840 | >=3840 | >=3840 | >=3840 | >=3840 | >=3840 | >=3840 | >=3840 |
| Power Consumption | 65/3 | 79/3 | 91/3 | 96/3 | 85/3 | 95/3 | 86/3 | 86/3 |
| Ingresss Protection | IP65/IP45 | IP65/IP45 | IP65/IP45 | IP65/IP45 | IP65/IP45 | IP65/IP45 | IP65/IP45 | IP65/IP45 |
| MTBF (hours) | 10,000 | 10,000 | 10,000 | 10,000 | 10,000 | 10,000 | 10,000 | 10,000 |
| Life span (hours) | 100000 | 100000 | 100000 | 100000 | 100000 | 100000 | 100000 | 100000 |
| Certification | BIS | BIS | BIS | BIS | BIS | BIS | BIS | BIS |
| Preffered Applications: | Rental, Fixed Indoor & Outdoor, Vehicle Mounted Screen, Dancefloor | |||||||
